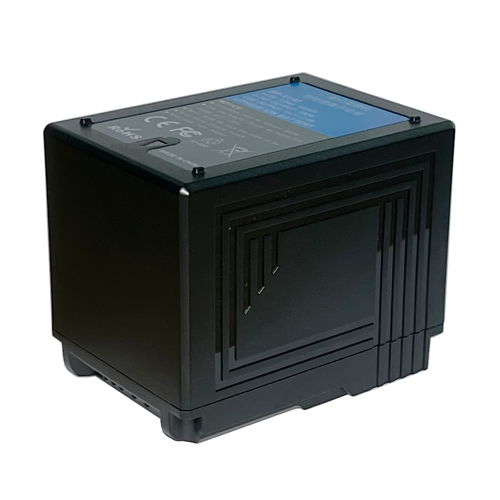

Jinnet BP-V142 142Wh Lithium ion Battery pack For Sony V Mount MW-400 PMW-500 PMW-EX330 RED-DRAGON Digital Cinema
L-ion Battery Pack V-Mount System
Product model BP-V142
Cell Specification INR18650*16
Volume Energy Density 729.5Wh /L
Standard Voltage 14.4V
Capacity 9861mAh /142Wh
D-Tap Charging Current Input DC16.8V-3.1mA (Max current 9.8A)
D-Tap Dual Discharge 10V
D-Tap Max Discharging Current 11A
D-Tap Discharge Current Protection 11.5V~12.5V
D-Tap Charging Time 4 to 5 hours
USB OUT DC5V Max 2.5A
End-off Voltage 10V
Operating temperature 0℃~45℃
Discharging temperature -10℃~60℃
Storage temperature -20℃~50℃
Size L104.9mm*W75mm*H84.1mm
Materials ABS+PC +Li-ion +PCB
Weight about 945g
BP-V142 For SONY V-Mount Professional Video System
V mount Video Camera DRAGON-REDDIGITAL CINEMA-DSMC2 DSR-250, 300, 370KS, 270WSL,600P PMW-EX330, 350, 250, S270, PMW-330K, 580K, F5, F55, F23, F3K, F3L, TD300, F35, HDW-F900R, 800P, PDW-700 850, DVW7,707P, 709WSP, 790WS, 90, 90WS, BVP-5, 50, 550W,BVW-200, 400, 400A, 505, 507, 550, 570, 590, D600...
Inspection records
1. Lithium-ion cells testing passed by battery's separator
2. PCB testing passed by the Electronic testing machine system
3. All products are repeatedly charged and discharged by Aging machine
4. Random Inspections passed by the testing machine, testing items: battery's capacity, voltage, memory data
5. Battery pack's current keeping on 70%~75% before shipment
Our Services
* The Product 1-Year Warranty. If the product faulty within one year, we will provide a replacement
* The Product's Pack up for Neutral Packing
* Support OEM order according to your requirement
* Usually we ship to the Products by UPS or Fedex or DHL other express, freight not included.
