Type Li-ion 21700*12
Number of Cell 12 pieces
Cell Volume Energy Density 729.5Wh /L
Standard Voltage 14.4V
Capacity 15000mAh /220Wh
D-Tap Charging Current Input 16.8V -7000mA
D-Tap Discharging Current Output 16.8V -14.9A to 25A
D-Tap Charging Time 6 to 8 hours
DC Input or Output 16.8V 3A
USB out DC4.75V to 5.25V Max 3A
End-off Voltage 10V
Operating temperature ℃~45℃
Discharging temperature -10℃~50℃
Storage temperature -20℃~50℃
Size L146.20mm*W97.10mm*H63.80mm
Weight 1291g

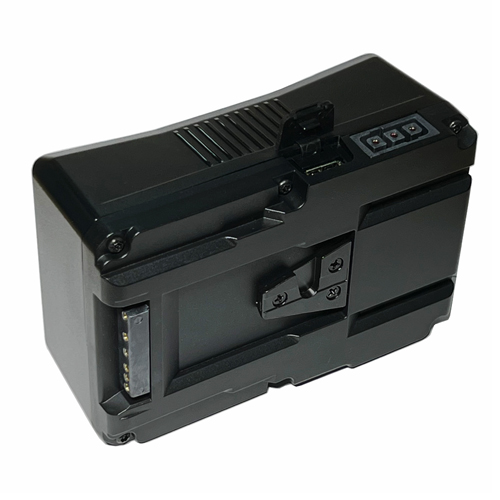

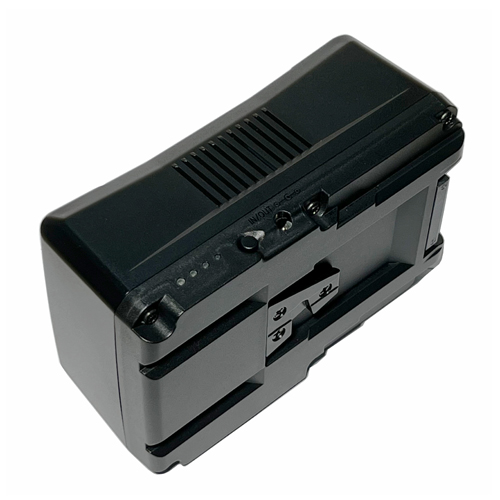

Rechargeable Lithium-ion Battery Pack For V-Mount Led Lamp System
Li-ion Battery Pack 14.4V-220W bothway d-tap 16.8v-7a /USB 5v-3a /DC input 16.8v-3a
Power display 25% 50% 75% 100%
Inspection records
1. Lithium-ion cells testing passed by battery's separator
2. PCB testing passed by the Electronic testing machine system
3. All products are repeatedly charged and discharged by Aging machine
4. Random Inspections passed by the testing machine, testing items: battery's capacity, voltage, data information
5. Battery pack's current keeping on 70%~75% before shipment
Our Services
* The Product 1-Year Warranty. If the product faulty within one year, we will provide a replacement
* The Product's Pack up for Neutral Packing
* Support OEM order according to your requirement
* Usually we ship to the battery pack by UPS or Fedex or DHL or other express, freight not included
